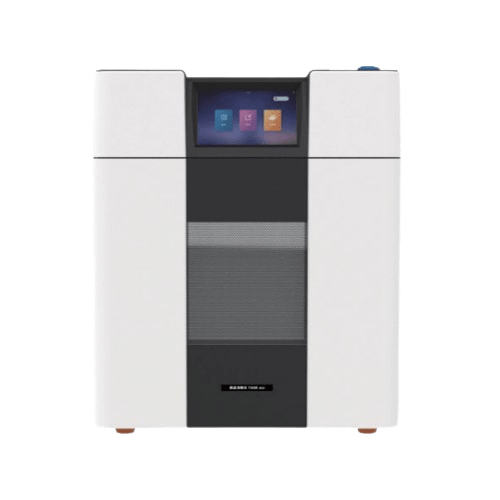

Microwave Digestion, TANK eco, ESMC, Drawell, China

Microwave Digestion/Extraction System, TANK eco

• Model: TANK eco
• Brand: Drawell Scientific
• Origin: China

Features

• 7-inch color touch screen
• 36L SS industrial-grade furnance cavity
• 6-position & 8-position rotors available
• Android System/Data compliance;
• Temperature & pressure sensor monitoring
  Parameters
• Power supply 220-240VAC 50/60Hz 20A
• Microwave source 2450MHz, high-energy microwave field transmission
• Installed power 1800W
• Maximum output power 1000W
• Large-volume 316L stainless steel cavity, internally and externally
• coated with multi-layer corrosion-resistant Teflon Microwave cavity
• Self-popping explosion-proof sliding furnace door, integrated structure design
• with prevention of microwave leakage Explosion-proof door design
• High-precision semiconductor pressure sensor,
• with pressure control range: 0~15MPa, accuracy ±0.01MPa
• Pressure measurement system
• Full vessel IR temperature control system,
• with temperature control range: -40~305°C, accuracy: ±0.1°C;
• Temperature measurement
• COT real-time abnormality monitoring system, which can automatically beep
• and cut off the microwave when an abnormality occurs to any reaction vessel;
• Safety Bolt design, providing vertical and quantitative release of overpressure
• Passive protection system
• Android system; Built-in method library; Cloud methods, data storage and sharing;
• Wi-Fi remote connection, etc.
• Software system
• Communication interface USB interface and internet interface
• High-power corrosion-resistant turbo fan, high-efficiency turbulent air cooling,
• less than 15 minutes cooling down to room temperature
• Exhaust system
• Working environment 0~40°C / 15~80%RH
• Physical size / net weight 480mmx560mmx575mm (Width x depth x height) /45kg
• Model of reaction vessel MP-100
• Batch capacity Standard configuration 6 vessels, up to 8 vessels
• Material of inner vessel TFM
• Material of outer vessel Aerospace composite fiber
• Rotor frame type Single Frame type
• Volume of reaction vessel 100mL
• Designed temperature 300°C
• Designed pressure 15MPa (2,200psi)
• Images are reference only. Actual product may be different.
