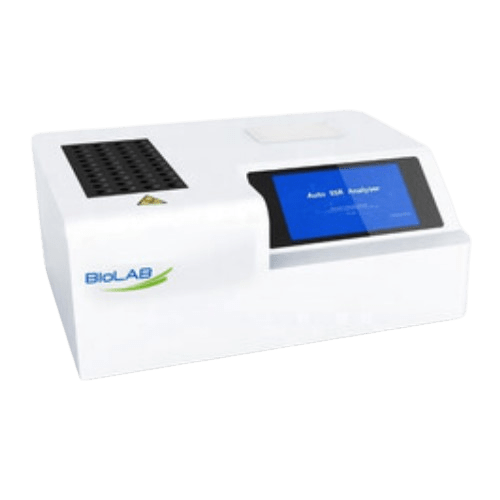

Automatic ESR Analyzer BANA-1400, ESMC, Biolab, Canada
250,000.00৳
Automatic ESR Analyzer BANA-1400, Biolab, Canada
- Series: 1400
- Model: BANA-1400
- Brand: Biolab
- Origin: Canada
- Manufacturer: Biolab Scientific
In order to precisely determine the standard curve and scan the comprehensive red blood cell sedimentation process within 30 minutes for the sample of the vacuum blood collection tube, the Automatic ESR Analyzer uses modern infrared light colour difference interpretation technology.
- 7-inch color touch LCD screen, easy to operate, high resolution
- 80 samples/hour, rapid detection
- Randomly insert sample positions for testing at any time
- Built-in thermal printer for easy data printing
Forensic Lab, Protein Analysis, Hospitals, Medical, Laboratory, Research, Industry, Pharmaceutical
- 7-inch color touch LCD screen, easy to operate, high resolution
- 80 samples/hour, rapid detection
- Randomly insert sample positions for testing at any time
- Built-in thermal printer for easy data printing
- Results are automatically temperature compensated
- Advanced optical testing principles to overcome reading errors in manual methods
- Power-off save function, automatically save the test results
| Measurement Method | Infrared detection |
| Analysis Result | Westergren ESR value (mm/hour) |
| Throughput | Maximum 80 tests/hour |
| Analysis Channels | 40 (load up to 40 samples for analysis at the same time) |
| Loading Type | Load samples at any time, measure at any time |
| Analysis Time | 30 minutes or 60 minutes selectable |
| Sampling Interval | 3 min |
| Measurement Range | 0~120 mm/h |
| Temperature Compensation | The result is automatically corrected to the result at 18°C |
| Result Resolution | 1 mm/1h and 1 mm/2h |
| Blood Level Range | 50 mm~64 mm |
| Result Accuracy | ±2mm/h (ESR≤30mm/h) ±3mm/h (30mm/h＜ESR≤80mm/h) ±5mm/h (ESR＞80mm/h) |
| Result Precision | CV ≤ 2% |
| Channel Error | ≤ ±4 mm/h |
| Reading Accuracy | 0.2 mm |
| Timing Accuracy | 90 |
| Display | 7-inch color LCD touch screen |
| Communication Interface | RS232 serial interface |
| Printer | Built-in thermal printer |
| Power Supply | AC220V 50/60Hz |
| External Size (WxDxH) | 360x300x180 mm |
| Net Weight | 7.3 kg |
| Package Size (WxDxH) | 395x335x375 mm |
| Gross Weight | 10 kg |
Images are reference only. Actual product may be different.
