Ceramic muffle furnace

Ceramic muffle furnace with embedded heating elements

Dear clients!

We present to your attention Nabertherm muffle furnaces.

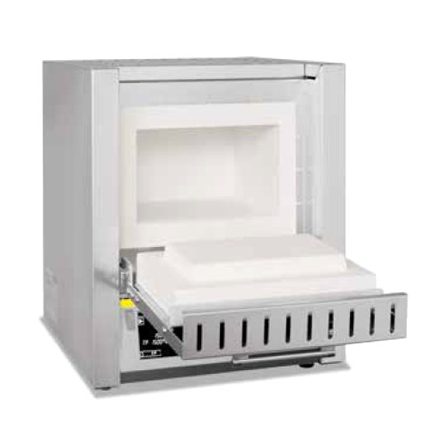

Ceramic Muffle Furnace with Built-In Heating Elements Nabertherm L 9/11 / SKM & LT 9/11 / SKM
Muffle furnace with built-in heating elements in ceramic muffle Nabertherm L 9/11 / SKM & LT 9/11 / SKM
MUFFLE FURNACE WITH BUILT-IN HEATING ELEMENTS IN CERAMIC MUFFLE NABERTHERM L 9/11 / SKM & LT 9/11 / SKM

The muffle furnace model Nabertherm L 9/11 / SKM is especially recommended when working with aggressive substances. The furnace is equipped with a ceramic muffle with built-in heating on 4 sides. This muffle furnace combines good temperature uniformity with good protection of heating elements in aggressive atmospheres. Another distinguishing feature is the smooth, almost dust-free muffle (fiber-insulated oven door), which is an important quality feature in some ashing processes.

• Maximum temperature 1100 ° C;
• Heating of the muffle from 4 sides;
• Furnace space with inserted ceramic muffle, high resistance to aggressive gases and vapors;
• Muffle furnace body made of structured stainless steel sheets;
• Muffle furnaces are available as an option with either a hinged door (L), which can be used as an additional loading and unloading area, or a lifting door (LT), with the hot side facing away from the operator;
• Adjustable intake air opening in the muffle furnace door;
• Exhaust hole in the rear wall of the furnace;
• Quiet operation of the furnace heating system with semiconductor relays.

Additional equipment for muffle furnaces:

• Chimney, chimney with fan or catalytic converter;
• Adjustable temperature limiter with adjustable shutdown temperature for thermal protection class 2 according to EN 60519-2 as overheating protection for ovens and products;
• Shielding gas supply at the rear of the furnace;
• Manual or automatic gas supply system.

Controller B410

• Easy to install the program
• Black and white LC screen, high contrast
• Display text messages (2 lines)
• Input data with 4 keys (on/off/pause, menu, back, info)
• Stores 5 programs, each program can be adjusted in 4 steps
• Step of temperature adjustment 1 o C
• Accuracy ± 1°C
• Choice of °C/°F
• Display on the menu parameters:
• Working timer
• Count kWh
• Show error history
• Output of control values
• Auto-optimization feature
• Calibration of measuring range with selection of up to 10 points
• NTLog USB port for data retrieval and processing
• In case of power failure, the following modes can be selected:
• Automatically resume running according to the program right before the power failure
• Automatically continue running according to the program right before the power failure if the power failure time is < 2 minutes, if more than that, do not continue running.
• Automatically continue running according to the program right before the power failure if the temperature does not drop lower than 50oC, if it is lower, do not continue running
• Do not continue to run the old program when restoring the power
• Language selection: 17 kinds of languages ​​(English / French / German / Italian…)
