Decade Resistance Box, ESMC, SI-R40103

15,000.00৳

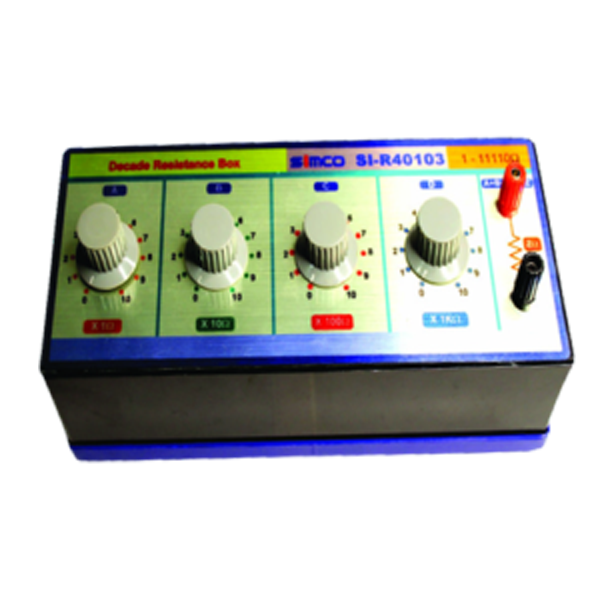

Decade Resistance Box

  • Model: SI-R40103
  • Brand: SIMCO
  • Origin: Bangladesh
Category:

Decade Resistance Box

  • Name: Decade Resistance Box
  • Model: SI-R40103
  • Brand: SIMCO
  • Origin: Bangladesh

This device is used to learn the characteristics of a resistance in a circuit.

Features

  • High accuracy
  • Clear visual indication
  • High stability
  • Safety terminals
  • Low temperature coefficient
  • Supplied with protective cover
  • The SI-R40103 is compact and durable, housed in a robust metal case with removable protective rubber cover, making it ideal for use in either the laboratory or field. Excellent accuracy (mid-scale 0.1 %) is achieved by using high stability metal film resistors. The 8-digit thumbwheel switch enables simple and precise setting with a clear indication of the resistance value.
  • Switch Contacts: Special attention has been given to the reliability of operation. A special multiple gold contact arrangement ensures low contact resistance and continued operation even if a contact fails.
  • Clear Visual Indication: To make selecting and reading the setting easy the 1040 incorporates colour coded digits: megohms – red, kilohms – yellow, ohms – white.

Technical Specification

Range 0 to 100 MΩ
Resolution 1 Ω steps
Decade 1 Ω 10 Ω 100 Ω 1 kΩ 10 kΩ 100 kΩ 1 MΩ 10 MΩ
Accuracy ± 1 % ± 0.5 % ± 0.1 % ± 0.1 % ± 0.1 % ± 0.1 % ± 0.1 % ± 1 %
Max Current 0.5 A 0.3 A 100 mA 30 mA 3 mA 0.3 mA 30 μA 3 μA
Residual Resistance Less than 250 mΩ
Power Rating 1 watt per resistor
Voltage Rating Maximum 250 V DC, 176 V AC RMS
Temperature Coefficient 50 ppm/°C
  • General Specification
Dimensions W 215 x H 100 x D120 mm including protective cover (W 200 x H 75 x D 110 mm without)
Weight 1 kg including protective cover (0.6 kg without)
Supplied With Protective cover (fitted) and user manual
Optional Extras Carry case (protective cover is removed when used).
Calibration certificates: Traceable (factory) and accredited (ISO 17025).
Country of Origin UK
Shipping Details Packed Dimensions: L 31 x W 24 x H 25 cm / Packed Weight: 2 kg
Decade Resistance Box SI-R40103, SI-R40103 Decade Resistance Box, SI-R40103 esmcbd, SI-R40103 elitetradebd, Decade Resistance Box price in bd, Decade Resistance Box saler in bd, Decade Resistance Box supplier in bd, Decade Resistance Box manufacturer in bd, Decade Resistance Box, SI-R40103 Decade Resistance Box, Decade Resistance Box price in Bangladesh, Decade Resistance Box seller in bd, Digital Color Test Pattern Generator PAL System, SI-850, SI-850 Digital Color Test Pattern Generator PAL System, Digital Color Test Pattern Generator PAL System price in Bangladesh, Power Project Board ETW 3000, ETW 3000 esmcbd, ETW 3000 Power Project Board, ETW 3000, Power Project Board price in bd, Power Project Board saler in bd, Power Project Board supplier in bd, Power Project Board Bangladesh, OP-AMP Trainer and Differential Amplifier SI-OP-AMP741, OP-AMP Trainer as Inverting Non-Inverting Summing & Differential Amplifier, SI-OP-AMP741, SI-OP-AMP741 OP-AMP Trainer and Differential Amplifier, OP-AMP Trainer and Differential Amplifier price in Bangladesh, OP-AMP Trainer and Differential Amplifier saler in bd, OP-AMP Trainer and Differential Amplifier Bangladesh, Analogue Trainer Board with Function Generator (0.1Hz to 100KHz), ETW 3600, Digital Trainer Board, ETW 3700, Power Project Board, ETW 3000, UJT as Relaxation Oscillator Trainer, SI-2654A, Digital Logic Trainer Board &Step-Down Transformer, SI-AD9015D, Half Wave and Full Wave Bridge Rectifier Circuit Trainer Board, SI-DR9020, Basic Logic Trainer Board, SI-2208L, Digital p-n Junction I-V Characteristics Trainer, SI-9205D, Half and full Adder & Half and Full Subtractor Trainer, SI-9914HS, SR JK D and T Flip-Flop Trainer, SI-SR9923, OP-AMP Trainer as Inverting Non-Inverting Summing & Differential Amplifier, SI-OP AMP741, Digital p-n Junction I-V and Zener Diode Characteristics Trainer, SI-9207AZ, SCR Characteristics Trainer, SI-9507DA, FET Characteristics Trainer, SI-9508DA, Energy gap Equipment for Semiconductor diode (Ge & Si.) & Intrinsic, Semiconductor with digital volt. Current & temperature readout, SI-DEG9251, Transistor's Characteristics Equipment p-n-p & n-p-n for c-b, & c-e Configurations for a and b parameter (With Digital Readout.), SI-DTC 9950, DC Power Supply: Regulated Dual Output DC Power Supply with Short Circuit Protection and Digital Voltage & Current Readout (Variable volts ± 0 to 30V & current 0 to 3A max.), SI-D3003VA, DC Power Supply: Regulated Dual Output DC Power Supply with Short Circuit Protection and Digital Voltage & Current Readout (Variable volts ± 0 to 30V & current 0 to 5A max.), SI-D3005VA, DC Power Supply: Stabilized Triple Output DC Power Supply with Digital Voltage Readout (Variable volts ± 0 to 30 / 3A; 5VDC /3A), SI-DF30053VA, DC Power Supply: Regulated Single Output DC Power Supply with Short Circuit Protection and Digital Voltage & Current Readout (Variable volts 0 to 60V & current 0 to 3A max.), SI-S6003VA, DC Power Supply: Regulated Single Output DC Power Supply with Short Circuit Protection and Digital Voltage & Current Readout (Variable volts 0 to 60V & current 0 to 5A max.), SI-S6005VA, DC Power Supply: Regulated Single Output DC Power Supply with Short Circuit Protection and Digital Voltage & Current Readout (Variable volts 0 to 30V & current 0 to 3A max.), SI-S3003VA, DC Power Supply: Regulated Single Output DC Power Supply with Short Circuit Protection and Digital Voltage & Current Readout (Variable volts 0 to 30V & current 0 to 5A max.), SI-S3005VA, DC Power Supply: Regulated Single Output DC Power Supply with Short Circuit Protection and Digital Voltage Readout (Variable volts 0 to 30V & current 0 to 4A max.), SI-S3004V, DC Power Supply: Regulated Single Output DC Power Supply with Short Circuit Protection and Digital Voltage Readout (Variable volts 0 to 30V & current 0 to 3A max.), SI-S3003V, DC Power Supply: Stabilized Dual Output DC Power Supply (Variable volts ±0 to 20 & current 1.5 A max.)Digital Voltage Readout, SI-D2001V, AC Step Down Transformer ac 3~30 Vac, 10 Step, SI-AC1030, AC-DC Power Supply: AC Step Down Transformer and Regulated DC Power Supply (AC 3-30V ac, 1A & DC ±0-30V, 1.5A), SI-DAD3030V, Regulated AC &DC Power Supply ( AC 0~250V 2A & DC 0-30V, 3A), SI-AD30250-3, Regulated DC Power Supply (DC 0~250V 10A), SI-DC25010AV, Regulated AC &DC Power Supply (AC 0~30/40V 2A & DC 0-30V, 3A), SI-AD3030-3, DC Power Supply: Stabilized Single DC Power Supply with Short Circuit Protection. (Variable volts 1.2V to 15/20V & current 1 A max.), SI-S1501D/ SI-S2001D, DC Power Supply: Stabilized Dual DC Power Supply with Short Circuit Protection. (Variable volts ±1.2V to ± 20V & current 1 A max.), SI-S2002D, Fixed DC Power Supply: Stabilized DC Power Supply, Very Low ripple with Short Circuit Protection Output Voltage 2.2V Output Current 1A, SI-F902, Fixed DC Power Supply: Stabilized DC Power Supply, Very Low ripple with Short Circuit Protection Output Voltage 5V Output Current 1A, SI-F905, Fixed DC Power Supply: Stabilized DC Power Supply, Very Low ripple with Short Circuit Protection Output Voltage 6V Output Current 1A, SI-F906, Fixed DC Power Supply: Stabilized DC Power Supply, Very Low ripple with Short Circuit Protection Output Voltage 12V Output Current 10A, SI-F1210A, Fixed DC Power Supply: Stabilized DC Power Supply, Very Low ripple with Short Circuit Protection Output Voltage 12V Output Current 15A, SI-F1215A, Fixed DC Power Supply: Stabilized DC Power Supply, Very Low ripple with Short Circuit Protection Output Voltage 12V Output Current 20A, SI-F1220A, Discharge Tube Power Supply: Hi-voltage DC power supply (DC output volts 5.8 KV (current 10mA max.) with Discharge Holder, SI-9704S, Transducer Equipment: To Determination the Characteristics Impedance of a Transducer, SI-901A, Transducer Equipment: Acoustic Transducer Equipment for Measuring the Speed of Sound, SI-902A, Sodium Vapor Lamp35W Power Supply with setup (without Lamp), SI-9704S, Sodium Vapor Lamp35W, Power Supply with setup (with Lamp UK), SI-9704SL, Audio Generator 0.2Hz-200KHz, SI-ASG200, Bread board system with Bench Type Base, SI-PB9001, Digital color Test Pattern Generator System PAL, SI- 850, RC Low Pass, High Pass and Band Pass Filter and RLC Series and Parallel Resonance Circuit Trainer, SI-RLC2058R, Inductor (1mH to 100mH Any Single value), SI-LxxxmH, Decade Inductor Box: 1mH-20mH/ 2mH-20mH/5mH-50mH/10mH-100mH, SI-L1010, Multi Induction Box: 0.5 – 100mH (10 option), SI-L10100H, Decade Capacitor BOX: 0.01µF 0.1µF, SI-1010C, Multi Capacitor Box 0.1-10 µF, SI-MC101, Decade Resistance BOX, SI-R2XX, Decade Resistance BOX, SI-R3XX, Decade Resistance BOX, SI-R4XX, Decade Resistance BOX, SI-R5XX, Solar Cell, SI-1009SC, Professional Digital Geiger Counter, USA. With 3 source, GCA-07W-DL, G M Counter: Intermediate GM System, USA, ST365A, G M Counter: Intermediate GM System, USA, ST365B, Spectrometers and Scintillation Spectroscopy System PC Base, USA, SCA System, Advance Spectroscopy Lab for PC USA, ADVPCI 1K, Advance Spectroscopy Lab for PC USA, ADVPCI 2K, Advance Spectroscopy Lab for PC USA, ADVPCI 4K, Universal Computer Spectroscopy Lab for PC USA, UCS30-1K, Universal Computer Spectroscopy Lab for PC USA, UCS30-2K, Universal Computer Spectroscopy Lab for PC USA, UCS30-4K, Source Set: Resolving Time set consisting of 2 each TI-20 Half disk plus a blank for determining GM dead time, RSS2, Source Set: A set of Three solid sources; Po-210Salpha, Sr-90-S beta, and Co- 60-S gamma all 3 are exempt quantities. USA, RSS3, Source Set: A set of four Gamma source, Co-57. Cs-137, Co-60 and “Unknown”, RSS4, Source Set: A set of Five sources: Po-210S alpha, Cs-137S, Sr-90S beta, TI- 204S beta, Co-60S gamma, USA, RSS5, Source Set: A set of eight sources for scintillation spectrometry. Includes Ba- 133S, Cd-109S, Co-57S, Co-60S, Cs-137S, Na-22S, Mn-54S and the mixture source Cs/ZnS as an “unknown” for student Identification, exempt quantities, RSS8, USA, Absorber Set: This is a complete absorber set. It has 20 calibrated absorbers ranging from 5mg/cm2 to 7200 mg/cm2 for use with a, b and g attenuation studies. Absorbers are made from plastic, aluminum and lead. USA, RAS20, GM Tubes, USA, GM35, 10 MHz Single Channel CRT; LODESTAR (Origin China), LOS-610A, 20MHz Dual Channel CRT; LODESTAR (Origin Taiwan), MOS-620B, 40MHz Dual Channel CRT; LODESTAR (Origin Taiwan), MOS-640B, 50MHz Dual Channel RCT; LODESTAR (Origin Taiwan), MOS-650B, 25MHz Dual Channel Color Digital Storage Oscilloscope Sample Rate 500Msps, UNI-T (Origin Hong Kong), UTD2025CL, 50MHz Dual Channel Color Digital Storage Oscilloscope Sample Rate 500Msps, UNI-T (Origin Hong Kong), UTD2052CL, 60MHz Dual Channel Color Digital Storage Oscilloscope Sample Rate 1GS/s, UNI-T (Origin Hong Kong), UTD2062CE, 100MHz Dual Channel Color Digital Storage Oscilloscope Sample Rate 1Gsps, UNI-T (Origin Hong Kong), UTD2102CE, 100MHz Four Channel Color Digital Storage Oscilloscope Sample Rate 1Gsps, UNI-T (Origin Hong Kong), UTD2104CE, 150MHz Dual Channel Color Digital Storage Oscilloscope Sample Rate 1Gsps, UNI-T (Origin Hong Kong), UTD2152CE, 200MHz Four Channel Color Digital Storage Oscilloscope Sample Rate 1Gsps, UNI-T (Origin Hong Kong), UTD2202CE, Oscilloscope Probe 40MHz, Taiwan, P6040, Oscilloscope Probe 60MHz, Taiwan, P6060, Oscilloscope Probe 100MHz, Taiwan, P6100, Audio Signal Generator: 10 Hz-1MHz, KENWOOD (Origin Japan), AG-203D, Audio Signal Generator: 10 Hz-1MHz, LODESTAR (Origin Taiwan), AG-2601A, Audio Signal Generator: 10 Hz-1MHz, LODESTAR (Origin Taiwan), LGA-101A, RF Signal Generator 100KHz – 150MHz, LGA-102A, Function generator: 0.2Hz-2MHz, UNI-T (Origin Hong Kong), UTG9002C-II, Function generator: 0.3Hz-3MHz; GW Instek (Origin Taiwan), SFG-1013, Function generator: 0.2Hz-2MHz; LW (Origin China), LW-1641, Function generator: 0.5Hz-5MHz; LW (Origin China), LW-1642, Function generator: up to 3MHz; LODESTAR (Origin Taiwan), MFG-2103, Function generator: up to 5MHz; LODESTAR (Origin Taiwan), MFG-2105, Function generator: up to 10MHz; LODESTAR (Origin Taiwan), MFG-2110, 200 MHz Frequency Counter; LODESTAR (Origin Taiwan), FC-5250C, 3GHz Frequency Counter; LODESTAR (Origin Taiwan), TFC-3000U, NTSC Color Bar Pattern Generator, LODESTAR (Origin Taiwan), CPG-1366A, PAL/B Color Bar Pattern Generator; LODESTAR (Origin Taiwan), CPG-1367A, Analogue AC/DC Power Supply Output 0-16VDC /0-10A, 0-16VAC / 0-5A, 0- 130VAC / 0-2.5A; LODESTAR (Origin Taiwan), Model- 850, Analogue Single Output DC Power Supply 0-30V / 3A; LODESTAR (Origin Taiwan), LPS-3003, Digital Single Output DC Power Supply 0-30V / 3A; LODESTAR (Origin Taiwan), LPS-3003D, Digital Single Output DC Power Supply 0-30V / 5A; LODESTAR (Origin Taiwan), LPS-3005D, Digital Triple Output DC, Power Supply 2x 0-30V / 3A, 1x 5V /3A; LODESTAR (Origin Taiwan), LPS-323DII, Digital Triple Output DC Power Supply 2x 0-30V / 5A , 1x 5V /5A; LODESTAR (Origin Taiwan, LPS-325DII, Digital Single Channel Output DC Power Supply± 0~30VDC, ± 0~10A, with output ON/OFF Switch and Preset switch; LODESTAR (Origin Taiwan), LPS-3010DII, Digital Single Channel Output DC Power Supply± 0~60VDC, ± 0~5A, with output ON/OFF Switch and Preset switch; LODESTAR (Origin Taiwan), LPS-605DII, Digital Single Channel OutputDC Power Supply ± 0~30VDC, ± 0~20A, with output ON/OFF Switch and Preset switch; LODESTAR (Origin Taiwan, LPS-3020D, Digital Triple Output DC Power Supply 2x 0-30V / 3A, 1x 5V /3A with output ON/OFF Switch and Preset switch; LODESTAR (Origin Taiwan), MPS-3003LP-3,Digital Triple Output DC Power Supply 2x 0-30V / 5A, 1x 5V /5A with output ON/OFF Switch and Preset switch; LODESTAR (Origin Taiwan, MPS-3005LP-3, DC Power Supply LODESTAR 0-30V 30A, LODESTAR (Origin Taiwan, LPS-3030D, DC Power Supply LODESTAR 0-30V 5A; LODESTAR (Origin Taiwan, SP-305TD, DC Power Supply LODESTAR 0-30V 3A; LODESTAR (Origin Taiwan, LPS303D, Analogue MULTIMETER; SANWA (Made in Japan), YX-360TRF, Analogue MULTIMETER; Lodestar (Origin Taiwan), LA01365, Digital MULTIMETER 3-½-Digit; SANWA (Made in Japan), CD800a, Digital MULTIMETER 4-Digit; LODESTAR (Origin Taiwan), LD9815B, Digital MULTIMETER 4-Digit with Temperature; LODESTAR (Origin Taiwan), LD9817B, Digital MULTIMETER 4-Digit; Fluke (Origin USA), 15B, Digital MULTIMETER 4-Digit with Temperature, Fluke (Origin USA), 17B, Bench Type Digital MULTIMETER 4-½ Digit; LODESTAR (Origin Taiwan), TH1941, Bench Type Digital MULTIMETER 5-½ Digit; LODESTAR (Origin Taiwan), TH1951, Bench Type Digital MULTIMETER 6-½ Digit; LODESTAR (Origin Taiwan), TH1961, Portable LCR Meter 6000 Count; LODESTAR (Origin Taiwan), TH-2821B, Portable LCR Meter 6000 Count, MASTECH (Origin Korea), MS5300, Portable LCR Meter 4000 Count; MIC (Origin Taiwan), LCR-4070D, Analogue and Digital Trainer (Taiwan), AT700, Hi-Voltage Machine Lab (SIMCO), BD-609, Microprocessor Trainer, 8086/8088, DSP Trainer, Mobile Communication Trainer GSM/CDMA, PLC Control Lab With Experimental Module, Communication Trainer, Fiber Optic Communication Trainer, Microcontroller Trainer, PLC Trainer, Analogue Communication Trainer, Digital Communication Trainer, Oscilloscope Probe 3.3 GHz Tectonics/HP USA, LUX Meter (light meter), Flux Meter (magnetic field meter), IC (Digital/Analogue), Transistor, Capacitor, Diode, Resistor, Zener Diode, UJT, FET, LED, LDR, Opto-Coupler, Seven segment Display (C-A/C-K), EPROM, EEPROM, Stepper Motor, Microcontroller, Alfa Numerical LCD Display, 16x1, 16x2, 16x4, 20x2, 20x4 and Graphics B&W/ Color, Discharge Tube: (Made in China/UK), Helium, Neon, Argon, Hydrogen any single, Bi-Prism Apparatus Complete set (with Lamp/with out Lamp), Newton’s Ring Apparatus complete set (with Lamp), Lambda, USA, Newton’s Ring Apparatus complete set (with Lamp), Pasco USA, Newton’s Ring Apparatus complete set (with Lamp) INDOSAW, India, Ballistic Galvanometer with laser light and scale setup India, Intermediate Spectrometer, Philips Harries, UK, Advance Spectrometer, Philips Harries, UK, Traveling Microscope: Stainless steel Vernier Constant 0.001cms, INDOSAW, India, Spectrometer Prism: (Origin UK), Extra Dens Flint Glass, R.I-1.65, Diffraction Grating:600/mm (3B Scientific Germany), GPS GARMIN USA eTrex Legend Cx, Digital Balance Four Digit 120/210G Germany

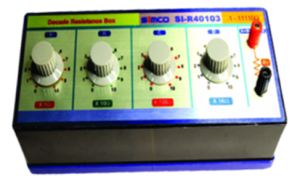

SI-R40103 Decade Resistance Box
