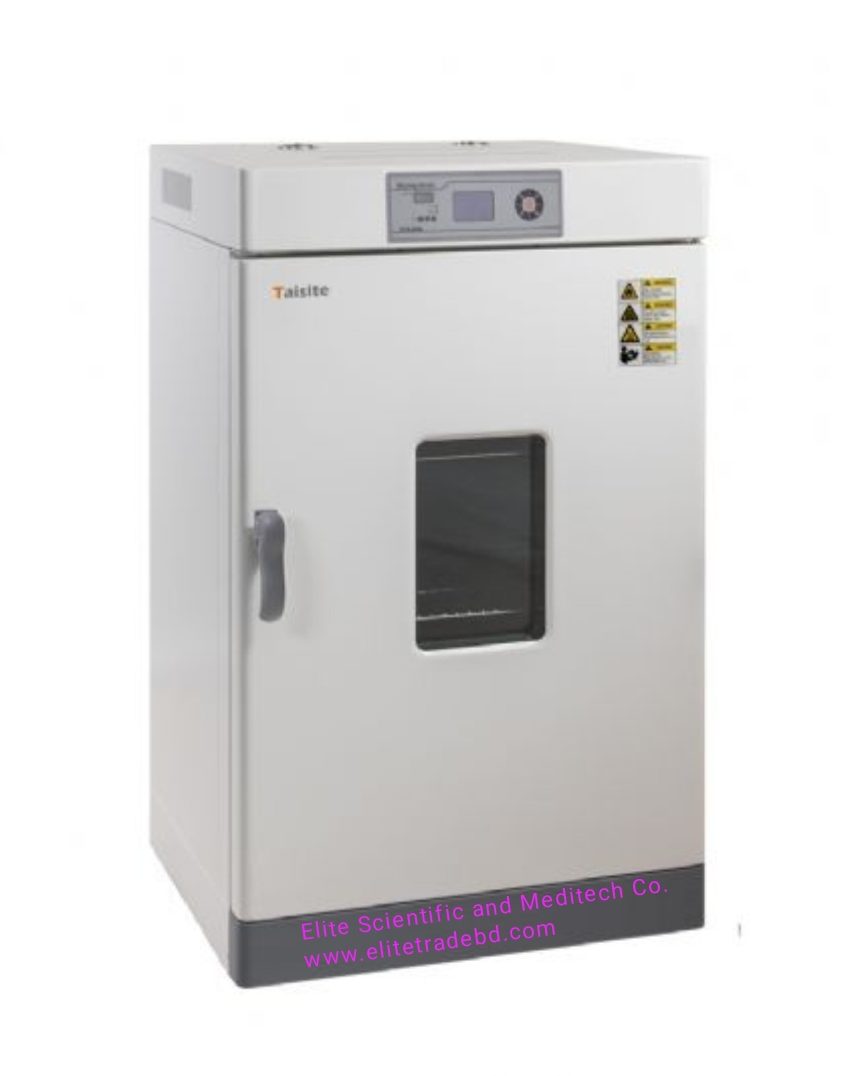

Drying oven NOC series [30L to 125L]

Drying oven NOC series [30L to 125L]

0.00৳

Drying oven NOC series [30L to 125L]

Description

NCO series drying oven is the most generally used natural convection oven in laboratories, is the best option for powder material heating and drying

Features

  1. High quality material:

Mirror stainless steel inner chamber and shelf, convenient for cleaning and disinfection, outer plate is coated with Akzo powder, has elegant appearance and good corrosion resistant.

  1. Good temperature uniformity:

With vertical double ducts design the oven temperature uniformity can reach within ±3.5%.

  1. Heating isolated casting and door:

The oven sides, top and door are all filled with heat-insulating material (not including glass), to ensure the operators are not scalded.

  1. Independent temperature limiter (Model L)

L type oven add a independent digital limiter, double guarantee the experiment will not fail because of over temperature.

Specification

Model NOC-30D NOC -45D NOC -65D NOC -85D NOC -125D
NOC -30L NOC -45L NOC -65L NOC -85L NOC -125L
Heating type Natural convection
Performance Temp. rang RT+10~300°C
Temp. resolution 0.1°C
Temp. fluctuation ±1°C
Temp. accuracy ±3.5%
Structure Chamber material Stainless steel
External material Cold rolled steel, powder coating
Thermal insulation Aluminum silicate fiber
heater Nickel-chromium alloy
Rated power 0.8KW 1.0KW 1.5KW 2.0KW 2.5KW
Air outlet Inner diameter 28mmx1. top
Controller Temp. control Fuzzy PID control
Temp. display D: 4 digital LED display L: LCD display
timer 0-9999 minutes
sensor Pt100
Safety device Over-temperature alarm: independent limiter (L model)
Specification Inner (WxDxH)/mm 310x310x310 350x350x350 400x360x450 450x450x450 500x450x550
Exterior (WxDxH)/mm 428x500x723 468x540x763 518x550x863 568x640x863 618x640x963
Packing  (WxDxH)/mm 570x570x820 600x600x880 670x620x960 760x720x1060 900x810x1330
Capacity 30L 45L 65L 85L 125L
Self load-bearing 15 KG
Self number 2 (Standard)
voltage AC220V/3.6A AC220V/5.5A AC220V/7.2A AC220V/8.2A AC220V/10.5A
N.W/G.W (kg) 33/37 37/43 44/49 50/56 60/66
Operational configuration Self: RS485(L model): USB(L model): Printer(L model) SMS alarm(L model)

Drying oven #Drying oven, Taisite Drying oven, Taisite natural convection oven, NOC series Oven, NOC-30D Drying oven, NOC -30L Drying oven, NOC -45D Drying oven, NOC -45L Drying oven, NOC -65D Drying oven, NOC -65L Drying oven, NOC -85D Drying oven, NOC -85L Drying oven, NOC -125D Drying oven, NOC -125L Drying oven #NOC-30D Drying oven  #NOC -30L Drying oven  # NOC -45D Drying oven #NOC -45L Drying oven  #NOC -65D Drying oven  #NOC -65L Drying oven #NOC -85D Drying oven #NOC -85L Drying oven #NOC -125D Drying oven #NOC -125L Drying oven, NOC-30D , NOC -30L, NOC -45D, NOC -45L, NOC -65D, NOC -65L, NOC -85D, NOC -85L, NOC -125D, NOC -125L #NOC-30D #NOC -30L # NOC -45D #NOC -45L #NOC -65D #NOC -65L #NOC -85D #NOC -85L, #NOC -125D #NOC -125L
