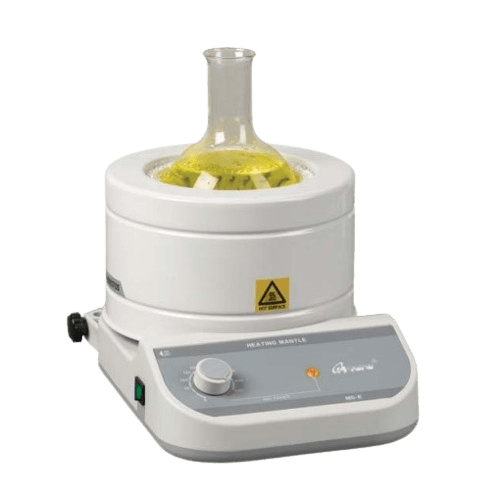

Heating mantles with controller, E 103, 450℃, 500ml

0.00৳

Controlled mantles

Description

Others models of products: MS-E(E05/E101/E102/E103)

Features

Heating mantle of the standard type with built-in temperature controller and easy to use
Heating temperature is controlled by analog temperature controller and controlled effectively from low temperature to high temperature.
Inner mantle part of the heating element consist of the soft glass fiber, protect from damage of the flask and excellent contact between the heating element and flask and heating effectiveness is excellent
“Power On” and “Heater On” indicating lamp
Ceramic fiber with strong thermal-resistance has excellent thermal insulation and double housing design (E05~E107) maintains low temperature of the mantle surface for user’s safety
With thermal resistance and durability bearing at the inner temperature over 450’C, strong aluminum housing and powder coating with corrosion-proof
CE certified

General Specifications

Model	Capacity	Watts	Dimensions W × D x H(mm)	Internal (height : mm)	Weight (Kg)
E 05	50ml	60	162×256×134	45	1.2
E 101	100ml	80	162×256×134	45	1.2
E 102	250ml	150	162×256×147	60	1.3
E 103	500ml	260	192×276×162	75	1.6
Note : EH model은 하구형임 (bottom hole) E108, E109, EH108, EH109 ⇒
