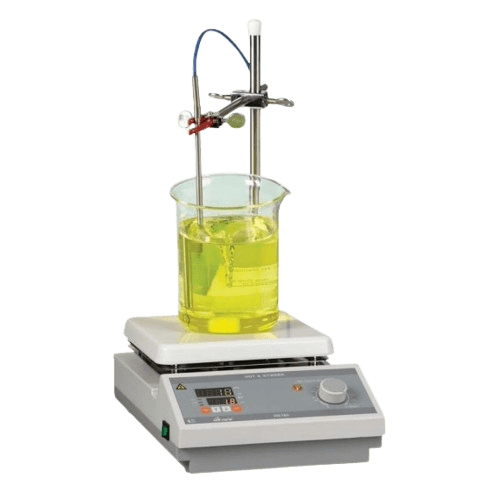

Hotplates & stirrers 2L HS150 Max 380℃ 100~1500rpm

Hotplates & stirrers 2L HS150 Max 380℃ 100~1500rpm

0.00৳

Hotplates & stirrers 2L HS150

  • Range: Max 380℃
  • Stirring -peed: 100~1500rpm
  • Model: Mtops
  • Country of Origin: Korea

PRODUCTS OTHERS MODEL: HS180/HS120/HS150/HS330

  • Hotplates & stirrers 2L HS150 Max 380℃ 100~1500rpm HS150
  • Accurate temperature control by PID auto-tuning function, built-in timer (99hr 59min)
  • max. temperature 380℃
  • max. temperature 350℃ (HS330)
  • Various sizes of the top plate and flexible choice
  • Speed display by scale (rpm)
  • Electronic feedback control maintains a precise speed
  • Max speed 1500rpm

Features

  • By use of the temperature controller with function of the built-in digital PID auto-tuning,
  • control temperature accurately and confirm set temperature and actual temperature at the same time
  • Possible to control the temperature of the sample with     external sensor (Option)
  • Temperature controller with built-in timer function (99hr 59min)
  • High-heat conductivity of top plate provides thermal     uniformity over the entire heating surface
  • Ceramic coated top plate provides excellent chemical-resistance, thermal-proof, and corrosion-resistance
  • Electronic feedback control maintains a precise speed
  • Smooth acceleration of stirring speed ensures no spillage
  • Speed display by scale (rpm)

Technical Specification

Model HS120 HS150 HS180 HS330
Type Hot plate & Magnetic Stirrer
Temperature Range Max 380℃ Max 350℃
Accuracy ±1℃
Controller Digital PID auto-tuning
Timer 99hr 59min
Heater power 350W 480W 680W 1400W
Stirring Speed 100~1500rpm 100~1300rpm
Speed display Scale(rpm)
Capacity(H2O) up to 1L up to 2L up to 5L up to 15L
Speed Controllerer Feedback control
Top Plate Ceramic coated top plate
Dimensions Plate area(mm) 120×120 150×150 180×180 300×300
Overall(W×D×H)(mm) 160×280×107 160×280×107 200×310×107 310×430×120
Electrical supply 220V 50/60Hz or 110V 50/60Hz
Weight 2.7Kg 2.8Kg 3.8Kg 7Kg

Warranty: 01 (One) year warranty from the date of installation.

Images are reference only. Actual product may be different.
