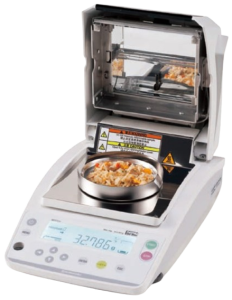

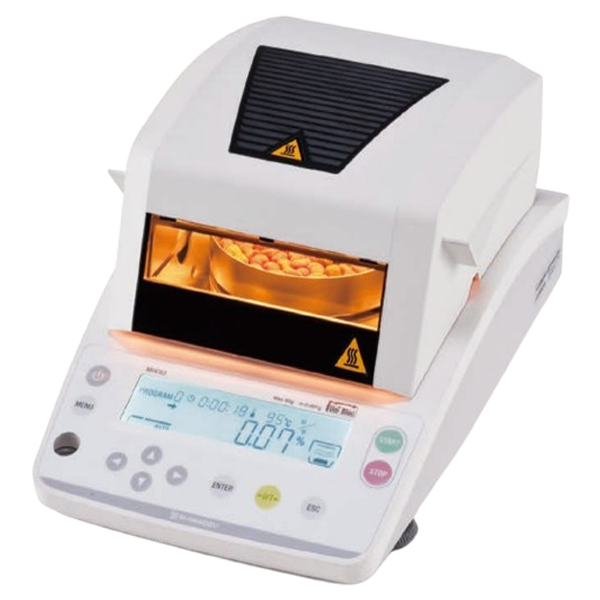

The Moisture Analyzer MOC63u
High Performance applicable for a wide application range Easy operation Automatic starting mode- Easy-to-operate software Automatic starting mode saves measurement time. Backlight display minted display provides comfortable display visibility Compact design class. Width is only 202 (mm). Long lifetime halogen heater Halogen heater promises Data management Direct- The measurement conditions and data can standard. Send balance data to Excel or other Windows applications.
Overview:
The MOC63u is a UniBloc Moisture Analyzer designed for diverse applications in industries such as food, chemical, environmental, and pharmaceutical. It features a reliable aluminum alloy mass sensor, known for its stability since 1989.
Specifications: The MOC63u has a maximum capacity of 60g and a minimum readability of 0.02g. It uses a 400W straight type halogen heater with a temperature range of 50-200°C, adjustable in 1°C increments. The device measures 202 × 336 × 157 mm and weighs 4kg. It operates effectively in temperatures from 5 to 40°C and humidity levels of 85%RH or lower.
Safety Precautions: Users should read the instruction manual before use. The analyzer is intended for water vaporization measurements and should not be used with explosive or hazardous samples.
Accessories: Standard accessories include a sample pan, aluminum sheet, tongs, in-use protection cover, and a fuse. Optional accessories include printers, protection covers, calibration kits, and cables.
Measurement Modes: The MOC63u offers automatic, timed, rapid, slow, and step drying modes, with an automatic starting mode for efficiency in repeated measurements.
Data Management: The device supports data management via WindowsDirect, allowing data transfer to Excel or other applications through RS-232C and USB connections.
Applications: The MOC63u is suitable for quality assurance in the food industry, quality control in the chemical industry, environmental measurements, and pharmaceutical inspections.
UniBloc Technology: The MOC63u features the UniBloc aluminum alloy mass sensor, enhancing reliability and response time by replacing numerous parts found in conventional sensors, ensuring consistent production and long operational life.
Technical Data
|
Model Name |
MOC63u | |
| Capacity | Max. Sample Quantity Min. Sample Quantity |
60 g 0.02 g |
| Minimum Display | Mass Moisture Ratio |
0.001 g 0.01 % |
| Repeatability * | 0.15 % (2 g), 0.05 % (5 g), 0.02 % (10 g) | |
| Heat Source | Method / Power | Halogen (straight tube) / Rated at 400 W |
| Temperature Settings | 50 to 200 °C (1 °C interval) (up to 1 hour for settings over 180 °C) | |
| Display | Backlit LCD | |
| Pan Size | Approx. 95 mm dia. | |
| Dimensions | Approx. W202 × D336 × H157 mm | |
| Weight | 4.2 kg | |
| Rated Power | 430 VA | |
| Ambient Temperature | 5 to 40 °C, relative humidity of 85 % max. | |
| Measurement Modes | Standard drying mode (Automatic ending/timed ending) Rapid drying mode (Automatic ending/timed ending) Slow drying mode (Automatic ending/timed ending) Step (3-stage) drying mode (Automatic ending/timed ending) |
|
| Time Settings | 1 to 240 min, or continuous (up to 12 hours) | |
| External Output | USB Data I/O printer (EP-100/EP-110) output RS-232C (D-sub 9P) |
|
| Storage of Measurement Conditions | 10 sets | |
| Data Memory | 100 items | |
| Standard Accessories |
Sample pans (3 aluminum pans), pan holder, windbreak, board, aluminum sheets (50), pan handler, power cable, spare fuses (2), protective display cover, hexagonal wrench |
|
* The repeatability (standard deviation) value is from a standard measurement (sample: sodium tartrate dihydrate). This value is not guaranteed for all samples, environments, and measurement conditions.
Images are reference only. Actual product may be different.
