Muffle Furnace (Laboratory and Industry) Sintering Furnaces, CRN Series, ESMC, Hobersal, Spain

Muffle Furnace (Laboratory and Industry) Sintering Furnaces, CRN Series, ESMC, Hobersal, Spain

0.00৳

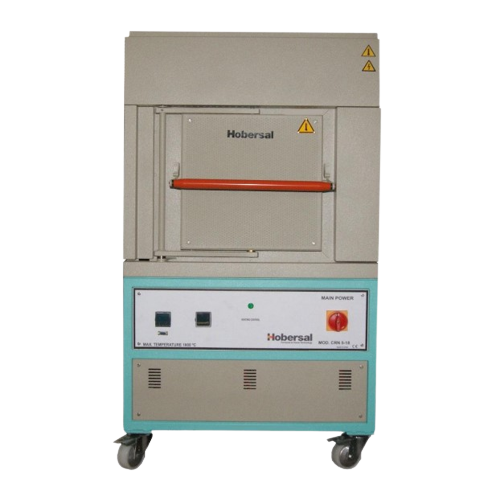

High temperature muffle furnace CRN series (MoSi2) (SiC), up to 1900 ºC, 42L to 166 liters

  • Model: CRN Series
  • Brand: Hobersal
  • Origin: Spain

Muffle Furnace (Laboratory and Industry) Sintering Furnaces

High temperature muffle furnace CRN series (MoSi2) (SiC)

  • Temperatures 1.600 ºC -1.800 ºC -1.900 ºC (MoSi2)
  • Vertical lift door
  • Inner sizes under request ( Custom furnace available)
  • From 3 liters to 1000 liters
  • Let work 24/7 in continuous mode
  • MoSi2 High quality molybdenum disilicide heating elements (SuperKanthal1800 and Superkanthal1900)
  • SiC High quality Silicon Carbide heating elements (SiC Kanthal)
  • Fast heat
  • Ramp programmer up to 64 steps
  • Inox chamber.
  • Low thermal mass insulation
  • Built with low density and ceramic fiber
  • Double isolation chamber + air chamber
  • Outside casing in metal sheet painted ( inox as optional)
  • Ventilated via rear by ceramic chimney
  • Thermocouple type S or B
  • Compact and lightweight furnace
  • Easy to replace all the spare parts by the end user
  • Furnace control:
  • Under the furnace
  • PAD Digital control. Microprocessor. Alarm.
  • Power adjustment: Eurotherm thyristor equipment
  • General safety switch
  • General safety contactor
  • Safety Shut-off
  • Thermocouple break shut-off
  • Turns off upon door opening
  • Manufactured under the CE
  • Accessories
  • Ceramic tray
  • Smoke chimney
  • Forced smoke chimney
  • Security class II. Over-temperature protection
  • Inlet gas entry
  • Flow meter box
  • Control System
  • Ramp programmer up to 64 steps
  • Eurotherm EPC Series  + Data logger Itools sofware by Ethernet (Optional)
  • Eurotherm Nanodac Series +Data logger and Itools software by Ethernet according AMS2750E and 21CFR Part 11 (Optional)
  • Standards: Ceramic and metal sintering process
  • Sintering furnaces for your 3D metal and ceramic printing applications.
  • Technical ceramics, sintering, debinding, bioceramics process

 TECHNICAL DETAILS

The metal and ceramic sintering process is used to compact a powder into a solid with the application of heat. The samples are heated in a sintering furnace to a temperature lower than the melting point which causes the powder particles to bond together into a compact mass.

Hobersal offers a very complete range of furnaces for sintering, vacuum furnaces, controlled atmosphere furnaces, muffle furnaces, ovens and high temperature muffle and tube furnace

TECHNICAL DETAILS

Model CRN5 CRN5X CRN6 CRN6X CRN6XL CRN7
Inner Dimensions

(H x W x D) (mm)

 350x350x350 400x400x400 450x450x450 500x500x500 400x400x800 550x550x550
Outer Dimensions

(H x W x D) (mm)

 1900x1100x800 200x1100x800 2000x1100x800 2100x1200x1300 2000x1200x1300 2100x1200x1300
Volume (Ltr) 42 64 91 125 128 166
Power (Kw) 18 20 20 20 25 20
Voltage (V) 380 III 380 III 380 III 380 III 380 III 380 III
Heating Zones – – – – – –
Max. Temp. ºC –ºC –ºC –ºC –ºC –ºC –ºC
Max. Temp. ºC Limited Time –ºC –ºC –ºC –ºC –ºC –ºC
Max. Temp. ºC Continuous –ºC –ºC –ºC –ºC –ºC –ºC
Thermocouple – – – – – –
Control Type Ramp P Ramp P Ramp P Ramp P Ramp P Ramp P
Heating Elements SiC/MoSi2 SiC/MoSi2 SiC/MoSi2 SiC/MoSi2 SiC/MoSi2 SiC/MoSi2

Images are reference only. Actual product may be different.
