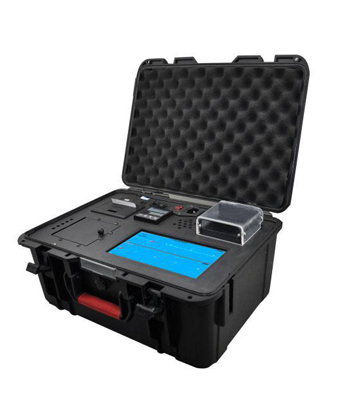

Multi parameter water quality analyzer, BK-WQA
0.00৳
Application-
It can be directly selected to measure COD, ammonia, total phosphorus, turbidity, color, hexavalent chromium, total chromium, nitrite nitrogen and other water quality testing indicators. It is widely used in environment protection, scientific research monitoring, production monitoring and other fields, and it’s the ideal equipment for environment monitoring and controlling.
Features:
* Suitcase detector integrated design, easy to carry.
* A single instrument can detect 3-99 parameters of water quality indicators.
* Large full-color touch screen, Icon function keys.
* Square sample cell, suitable for various kinds of cuvettes.
* Manual modification, auto-calibration and auto-fitting.
Measurable items:
| NO. | Parameter Name | Measuring Range | NO. | Parameter Name | Measuring Range |
| 1 | Residual chlorine | 0.05~5.00mg/L | 51 | Nickel | 0.05~0.5mg/L |
| 2 | Total chlorine | 0.05~5.00mg/L | 52 | Tin | 0.01~0.50mg/L |
| 3 | Ozone | 0.05~2.50mg/L | 53 | Acidity/phenolphthalein-D | 10.0~1000mg/L |
| 4 | Nitrite-N | 0.01~0.40mg/L | 54 | Carbonate-D | 10.0~1500mg/L |
| 5 | Ammonia nitrogen | 0.05~10.0mg/L | 55 | Bicarbonate-D | 10.0~1500mg/L |
| 6 | Low turbidity | 0.5~60.0NTU | 56 | Selenium | 0.10~1.00mg/L |
| 7 | Total phosphorus | 0.01~1.00mg/L | 57 | Temperature-J | (-50～300)℃ |
| 8 | Hexavalent chromium | 0.01~1.00mg/L | 58 | Salinity-J | (0.0～28)% |
| 9 | Sulfide | 0.02~1.00mg/L | 59 | Potassium | 30.0~100mg/L |
| 10 | COD | 10~1000mg/L | 60 | Cadmium | 0.10~5.0mg/L |
| 11 | Fluoride | 0.02~2.00mg/L | 61 | Arsenic | 0.006~0.5mg/L |
| 12 | Dissolved oxygen | 0.1~10.0mg/L | 62 | Barium | 1.0~10.0mg/L |
| 13 | Mn | 0.05~5.00mg/L | 63 | Beryllium | 0.01~0.30mg/L |
| 14 | Fe | 0.10~3.00mg/L | 64 | TDS-J | 0-9990ppm |
| 15 | Calcium-D | 2~200mg/L | 65 | Molybdenum | 0.01~0.30mg/L |
| 16 | Chlorine dioxide | 0.10~3.00mg/L | 66 | Silver | 0.05~1.00mg/L |
| 17 | Nitrate-N | 0.5~20.0mg/L | 67 | Residual chlorine-1 | 0.5~10.0mg/L |
| 18 | High turbidity | 5~400NTU | 68 | Total chlorine-1 | 0.5~10.0mg/L |
| 19 | Chroma | 5~200PCU | 69 | Ozone-1 | 0.5~5.00mg/L |
| 20 | Total chromium | 0.01~1.00mg/L | 70 | Ammonia nitrogen-1 | 1.0-50.0mg/L |
| 21 | Phosphate | 0.1~1.0mg/L | 71 | COD-1 | 500~5000mg/L |
| 22 | Sulfate | 5.0~250.0mg/L | 72 | Total phosphorus-1 | 0.5~10.0mg/L |
| 23 | CODmn-D | 0.50~8.00mg/L | 73 | Total hardness | 12.5~450mg/L |
| 24 | Total hardness-D | 1.0~500.0mg/L | 74 | PH | 5.5~9.5 |
| 25 | Formaldehyde | 0.05~1.50mg/L | 75 | Calcium | 0.1~2.00mg/L |
| 26 | Volatile phenol | 0.10~5.00mg/L | 76 | Manganese-1 | 0.5~10.00mg/L |
| 27 | PH-J | 2.0～14.0 | 77 | Copper-1 | 0.5~5.00mg/L |
| 28 | Chloride-D | 20.0~500mg/L | 78 | Iron-1 | 0.5~10.00mg/L |
| 29 | Cyanide | 0.03~1.00mg/L | 79 | Hexavalent chromium-1 | 0.5~10.00mg/L |
| 30 | Aluminum | 0.01~0.50mg/L | 80 | Total chrome | 0.5~10.00mg/L |
| 31 | Cu | 0.05~1.00mg/L | 81 | Aniline | 0.03~50mg/L |
| 32 | Zn | 0.05~3.00mg/L | 82 | Nitrobenzene | 0.1~70mg/L |
| 33 | Free chlorine | 0.05~5.00mg/L | 83 | Thiocyanate | 0.15~1.5mg/L |
| 34 | Mg-D | 2~200.0mg/L | 84 | Cobalt | 0.01~0.50mg/L |
| 35 | Total alkalinity D | 10.0~1000mg/L | 85 | Boron | 0.20~8.00mg/L |
| 36 | Nitrates | 5.0~150.0mg/L | 86 | Cyanide chloride | 0.03~1.00mg/L |
| 37 | Nitrite | 0.05~2.00mg/L | 87 | Plumbum | 0.01~1.00mg/L |
| 38 | Orthophosphate | 0.1~1.0mg/L | 88 | HG | 2.00~40.0μg/L |
| 39 | Chlorite | 0.05~2.0mg/L | 89 | Conductivity-J | 0~1999us/cm |
| 40 | Sodium hypochlorite | 100~5000mg/L | 90 | Iodine | 0.00~2.00mg/L |
| 41 | Sodium chromate | 0.01~1.00mg/L | 91 | Chloride | 0.5~4.0mg/L |
| 42 | Peracetic acid | 0.0~10.0mg/L | 92 | Vanadium | 0.02~10.0mg/L |
| 43 | Hydrogen peroxide | 1.0~100.0mg/L | 93 | Antimony | 0.05~1.2mg/L |
| 44 | Hydrogen sulfide | 0.01~1.00mg/L | 94 | Thorium | 0.008~3.0mg/L |
| 45 | Silica | 1.0~20.0mg/L | 95 | Monomethyl hydrazine | 0.02~0.8mg/L |
| 46 | Urea | 0.5~10.0mg/L | 96 | Triethylamine | 0.5~3.5mg/L |
| 47 | Sulfite | 0.1~20.0mg/L | 97 | Trichloroacetaldehyde | 0.10~2.00mg/L |
| 48 | Detergent | 0.1~3.0mg/L | 98 | Diethylenetriamine | 0.40~3.20mg/L |
| 49 | Hydrazine | 0.01~0.10mg/L | 99 | Unsymmetrical dimethylhydrazine | 0.01~1.00mg/L |
| 50 | Free ammonia | 0.1~5.0mg/L | Note: The suffix-J is a pen-type ion meter | ||
Technical Parameters:
| Model | BK-WQA |
| Light Source Life | ≥ 100000h |
| Stability | ≤ 0.005A / h |
| Detection System | Multi-channel independent detection system |
| Detection Circuit | High-precision constant test circuit |
| Display | Large touch screen display |
| Measurement Precision | ≤ ± 5% or ± 10% F.S |
| Repeatability Precision | ≤ ± 3% |
| Storage Capacity | Detection data 50000 group |
| Number of Curves | 230 |
| Printer | Built-in mini thermal line printer |
| Digestion Temp. | RT~ 500 ℃ |
| Digestion Time | 1 ~ 9999s |
| Processing Capacity | 4 water samples |
| Temp. Accuracy | <± 1 ℃ |
| Temp. Uniform | <± 1 ℃ |
| Power Supply | AC110/220V±10%, 50/60Hz |
| Standard Accessory | 4 holes digestion device |
| Optional Accessory | Kits for all parameters except the suffix-J |
| External Size (W*D*H) mm | 355*275*165 |
| Package Size (W*D*H) mm | 440*350*250 |
| Net Weight (kg) | 4.5 |
| Gross Weight (kg) | 5 |
Standard Accessory:
Kits for COD, Ammonia nitrogen and Total phosphorus; 4 holes digestion device
Optional Accessory:
