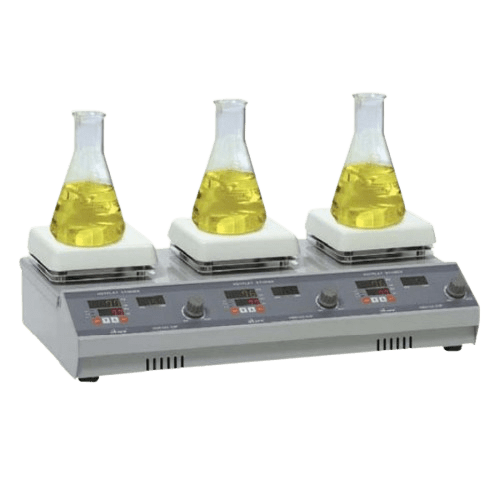

Multi-position hot & stirrers HSD120-03P Max. 380℃; 100~1500rpm
0.00৳
Multi-position hot & stirrers
Max. temp. 380℃; 100~1500rpm 3 positions
- Model: HS15-26P
- Brand: Mtops
- Origin: Korea
Description
Others models of products: HSD120-03P, HSD150-03P
- Three-In-One Hot plate stirrers
- Individually controlled stirring and heating positions with digital display
- temperature: 380℃
- Precise temperature control by PID auto-tuning, built-in timer (99hr 59min)
- speed : 1500rpm
- Feedback speed control with Digital display
- Excellent precision and accuracy of the temperature and speed control
- Ideal for several applications at one time
- Multiple type and compact design
Features
- It is individually controlled stirring and heating positions
- It is possible to change stirring speed and heating temperature on same and different condition
- By use of the temperature controller with function of the built-in PID auto-tuning, control temperature accurately and confirm set temperature and actual temperature at the same time
- Temperature controller with built-in timer function (99hr 59min)
- Possible to control the temperature of the sample with external sensor.(Option)
- Digital display of stirring speed and precise speed by feedback control.
- It is individually controlled stirring and heating positions that let you perform different applications simultaneously
- Ceramic coated top plate provides excellent chemical resistance, thermal-proof, and corrosion resistance
- Bright white color lets you easily view stirring processes
- High-heat conductivity of top plate provides thermal uniformity over the entire heating surface
- Smooth acceleration of stirring speed ensures no spillage
Specifications
| Model | HSD120-03P | HSD150-03P | |
| Type | 3 Positions | ||
| Temperature | Range | Max.380℃ | |
| Accuracy | ±1℃ | ||
| Controller | Digital PID auto-tuning | ||
| Timer | 99hr 59min | ||
| Heater power | 350W×3 | 480W×3 | |
| Stirring | Speed | 100~1500rpm | |
| Speed display | Digital | ||
| Capacity(H2O) | up to 1L | up to 2L | |
| Speed Controller | Feedback control | ||
| Top Plate | Ceramic coated top plate | ||
| Dimensions | Plate area(mm) | Each 120×120 | Each 150×150 |
| Overall(W×D×H)(mm) | 480×260×125 | 510×300×125 | |
| Electrical supply | 220V 50/60Hz or 110V 50/60Hz | ||
| Weight | 7.3Kg | 8.3Kg | |
Warranty: 01 (One) year warranty from the date of installation.
Images are reference only. Actual product may be different.
